Loading Originals on the Platen Glass

You can load originals to copy or scan on the platen glass.

Load an original on the platen glass.

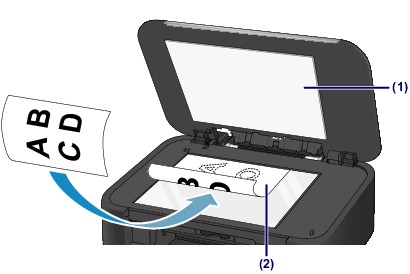

(1) Open the document cover.

Important

Do not place any object on the document cover. It will fall into the rear tray when the document cover is opened and cause the machine to malfunction.

When opening or closing the document cover, do not touch the buttons on the operation panel. Doing so may result in an unexpected operation.

(2) Load the original WITH THE SIDE TO SCAN FACING DOWN on the platen glass.

Make sure of the proper position to load the original for each function.

How to Load Originals for Each Function

Important

Be sure to observe the following when loading the original on the platen glass.

- Do not place any objects weighing 4.4 lb (2.0 kg) or more on the platen glass.

- Do not put any pressure of 4.4 lb (2.0 kg) or more on the platen glass, such as pressing down the original.

Failure to observe the above may cause the scanner to malfunction or the platen glass to break.

Close the document cover gently.

Important

After loading the original on the platen glass, be sure to close the document cover before starting to copy or scan.
