S101
MP Navigator EX

What Is MP Navigator EX (Supplied Scanner Software)?

MP Navigator EX is an application that enables you to easily scan photos and documents. It is suitable even for beginners.

Important
  • MP Navigator EX may not start from the operation panel of the machine. In that case, restart the computer.

  • MP Navigator EX can scan images of the following data size:

    - 10000 pixels x 10000 pixels or less

  • Use the default display font size of the OS. Otherwise, software screens may not appear correctly.

What You Can Do with This Application

This software allows you to scan multiple documents at one time, or scan images larger than the Platen. You can also save scanned images, attach them to e-mail or print them.

Screens

There are two types of MP Navigator EX Main Menu: Navigation Mode screen and One-click Mode screen.

Navigation Mode Screen

You can start various tasks from the Navigation Mode screen, including simple scanning, scanning using ScanGear (scanner driver), and enhancing/correcting images.

figure: Navigation Mode screen

One-click Mode Screen

You can complete from scanning to saving, etc. at one time by simply clicking the corresponding icon in the One-click Mode screen.

figure: One-click Mode screen

Scan/Import Window

Use the Scan/Import window to scan photos and documents, or import images saved on memory cards.

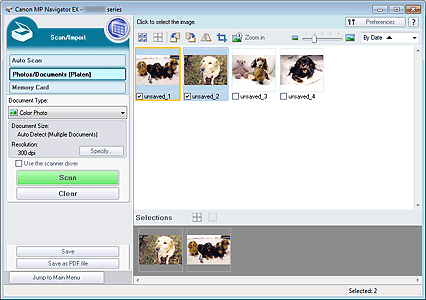

figure: Scan/Import window

View & Use Window

Use the View & Use window to select what you want to do with the scanned images.

figure: View & Use window
Note
  • See "File Formats" for data formats (extensions) supported by MP Navigator EX.
