Use the Advanced Mode tab to specify the color mode, output resolution, image brightness, color tone, etc. when scanning.
See "Scanning Multiple Documents at One Time with ScanGear (Scanner Driver)" to scan multiple documents at one time.
ImportantThe following types of documents may not be cropped correctly. In that case, click
(Thumbnail) on the Toolbar to switch to whole image view and scan.
- Photos that have a whitish border
- Documents printed on white paper, hand-written text, business cards, etc.
- Thin documents
- Thick documents
The following types of documents cannot be cropped correctly.
- Documents smaller than 1.2 inches (3 cm) square
- Photos that have been cut to various shapes
Place the document on the Platen, then start ScanGear (scanner driver).

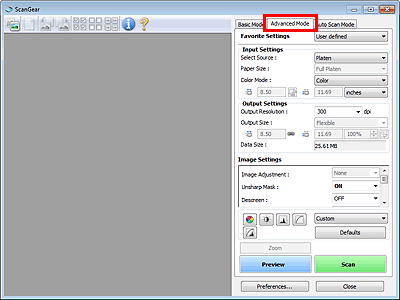

Click the Advanced Mode tab.
The Advanced Mode tab appears.
NoteSettings are not retained when you switch modes.
Set Input Settings.

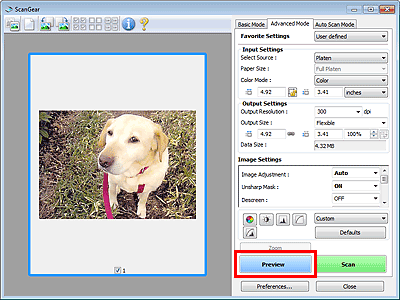

Click Preview.
Preview image appears in the Preview area.
Set Output Settings.
Adjust the cropping frame (scan area), correct image and adjust colors as required.
Click Scan.
Starts scanning.
NoteClick
(Information) to open a dialog box in which you can check the current scan settings (document type, etc.).
A response of ScanGear after scanning can be specified in Status of ScanGear dialog after scanning on the Scan tab of the Preferences dialog box.
