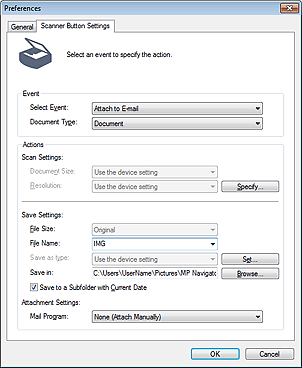

On the Scanner Button Settings tab, you can specify how to respond when scanning using the operation panel of the machine.
This section describes the settings available when Select Event is Attach to E-mail.
See "Setting Items on the Operation Panel of the machine" for details on the items to be set using the operation panel of the machine.
Select Event
Displays the scan modes that can be selected on the operation panel of the machine. Select Attach to E-mail.
Document Type
Displays the document types that can be selected on the operation panel of the machine.
Document Size
Set this item using the operation panel of the machine.
Resolution
Set this item using the operation panel of the machine.
Specify...
Opens the Scan Settings dialog box in which you can make advanced scan settings.
File Size
Not available.
File Name
Enter the file name of the image to be saved (up to 64 characters).
Save as type
Set this item using the operation panel of the machine.
Set...
The Save Settings dialog box opens and you can make advanced settings for saving images scanned using the operation panel of the machine as JPEG or PDF files.
Specify JPEG on printer's operation panel
Click Set... to specify a compression type for JPEG files. Select High(Low Compression), Standard, or Low(High Compression).
ImportantThis setting is not available when the Compress scanned images when transferring checkbox is selected on the "General Tab" of the Preferences dialog box.
Specify PDF on printer's operation panel
Click Set... to make advanced settings for creating PDF files. See "PDF Settings Dialog Box" for details.
ImportantUse the operation panel of the machine to set the compression type for saving.
Save in
Displays the folder in which to save the scanned images. To change the folder, click Browse... to specify another one.
By default, the scanned images are saved in the following folders.
Windows 7: MP Navigator EX folder in My Pictures folder
Windows Vista: MP Navigator EX folder in Pictures folder
Windows XP: MP Navigator EX folder in My Pictures folder
Save to a Subfolder with Current Date
Select this checkbox to create a subfolder in the folder specified in Save in with the current date and save scanned files in it. A subfolder with a name such as "2011_01_01" (Year_Month_Date) will be created.
If this checkbox is not selected, files are saved directly in the folder specified in Save in.
Mail Program
Specify an e-mail software program.
