MP Navigator EX

Correcting/Enhancing Images Automatically

MP Navigator EX will analyze and correct/enhance scanned images automatically.

  1. Scan documents into MP Navigator EX and save them, then open the View & Use window from the Navigation Mode screen and select the photos you want to correct/enhance.

    Note

  2. Click Edit/Convert, then click Fix photo images on the list.

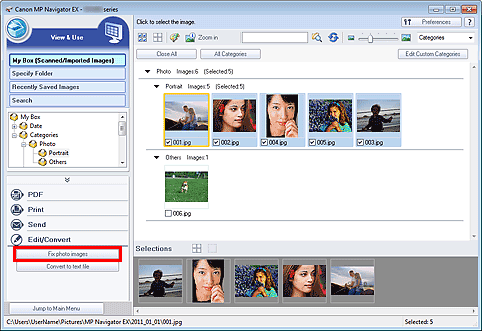

    figure: View & Use window

    The Correct/Enhance Images window opens.

    Note

    • The Correct/Enhance Images window can also be opened by clicking (Image Correction/Enhancement) on the Toolbar or in the Zoom in window. In that case, only the target image (outlined in orange) can be corrected/enhanced.

    • See "Correct/Enhance Images Window" for details on the Correct/Enhance Images window.

  3. Select the image you want to correct/enhance from the thumbnail list.

    The selected image appears in Preview.

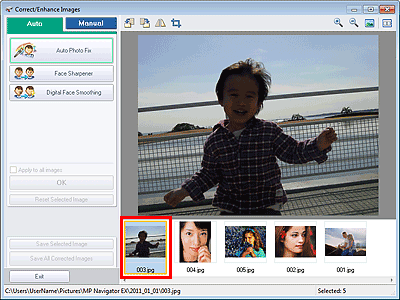

    figure: Correct/Enhance Images window
    Note

    • If you selected only one image in the View & Use window, the thumbnail list does not appear and only the preview image appears.

  4. Make sure that Auto is selected.

  5. Click Auto Photo Fix, Face Sharpener, or Digital Face Smoothing.

    figure: Auto tab
    Important

    • Once image is corrected with Auto Photo Fix and saved, it cannot be corrected again with Auto Photo Fix. Auto Photo Fix may not be available for images edited using an application, digital camera, etc. manufactured by other companies.

    Note

    • The Face Sharpener and Digital Face Smoothing effect levels can be changed using the slider that appears by clicking the corresponding buttons.

    • When you apply Auto Photo Fix, dark backlit photos will be corrected automatically. If the image is not corrected enough using Auto Photo Fix, it is recommended that you apply Face Brightener on the Manual tab.

      Correcting/Enhancing Images Manually

  6. Click OK.

    The entire image is corrected/enhanced automatically and (Correct/Enhance) mark appears on the upper left of the thumbnail and preview image.

    Note

    • Click Reset Selected Image to undo the correction/enhancement.

    • Select the Apply to all images checkbox to correct/enhance all selected images.

  7. Click Save Selected Image or Save All Corrected Images.

    You can save corrected/enhanced images as new files.

    Note

    • To save only the images you like, select them and click Save Selected Image. To save all images, click Save All Corrected Images.

    • The file format of corrected/enhanced images is JPEG/Exif.

    • Adobe RGB images are saved as sRGB images.

  8. Click Exit.

    Important

    • The corrections/enhancements will be lost if you exit before saving corrected/enhanced images.
