S502
MP Navigator EX

Printing Documents

You can print multiple scanned images at one time, print at specific quality, etc. using MP Navigator EX.

  1. Scan documents into MP Navigator EX and save them, then open the View & Use window from the Navigation Mode screen and select images.

    Note

  2. Click Print, then click Print Document on the list.

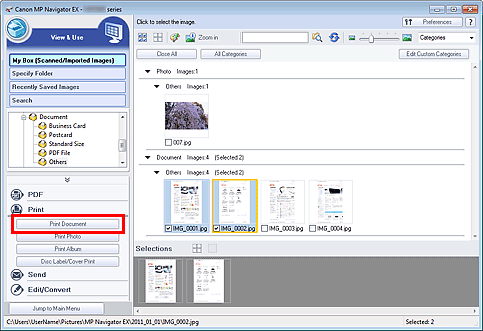

    figure: View & Use window
    Important

  3. Specify print settings as required.

    In the displayed dialog box, specify print count, quality, scale, etc.

    Print Document Dialog Box

    figure: Print Document dialog box
    Important

    • At 100% Normal-size, some images may be printed small or with some portions cropped. In that case, select Auto to resize the print in proportion to the paper size.

  4. Click Print.

    Starts printing.

    Note

    • When printing a multiple-page PDF file via Print Document, printing may take time depending on your computer. In that case, follow these steps and change settings.

      Windows 7:

      1. From the Start menu, select Devices and Printers.

      2. Right-click the icon of your printer and click Printer Properties.

      The printer properties dialog box opens.

      3. Click the Advanced tab.

      4. Select Spool print documents so program finishes printing faster.

      5. Select Start printing after last page is spooled.

      6. After printing, return the setting on the Advanced tab to Start printing immediately.

      Windows Vista/Windows XP:

      1. From the Start menu, select Control Panel.

      2. Click Printer.

      (Windows XP: Click Printers and Other Hardware > Printers and Faxes.)

      3. Right-click the icon of your printer and click Properties.

      The printer properties dialog box opens.

      4. Click the Advanced tab.

      5. Select Spool print documents so program finishes printing faster.

      6. Select Start printing after last page is spooled.

      7. After printing, return the setting on the Advanced tab to Start printing immediately.

    • To cancel while spooling, click Cancel. To cancel while printing, click Cancel Printing in the confirmation window for the printer status. To open a confirmation window for the printer status, click printer icon on the taskbar.
